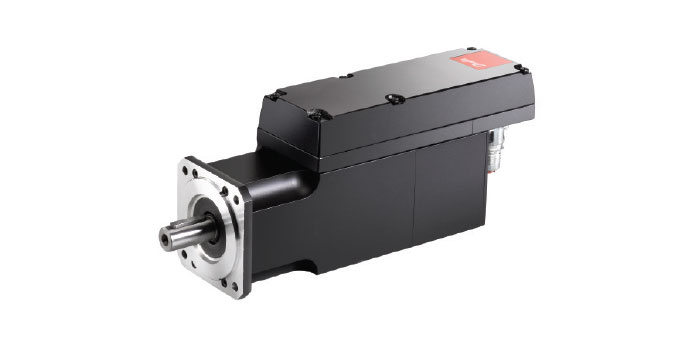

The VLT®Integrated Servo Drive ISD® 510 is a high-performance decentral servo motion solution that comprises a central power supply VLT® Servo Access Box (SAB®), drive modules and cabling infrastructure. The motion control is integrated into the drive so that motion sequence can take place independently. This releases the central PLC and offers a highly flexible drive concept.
The decentralization of the drive unit offers benefits in mounting, installation and operation. And, depending on the application, the SAB can power up to 64 drives in a servo drive system.
400-480 V...0.72-0.94 kW
3 x 400-480 V...7.5 kW
Rated voltage: DC 600 V
Rated torque: 1.7-3.4 Nm
Easy and fast installation due to hybrid cables in a daisy-chain concept and DC supply to the drives from the central SAB
Fast process communication as the open system supports both EtherCAT® and POWERLINK®
Selection of the most suitable drive for the application’s torque and power requirements due to 192 motor variants
Direct connection to the servo drives for fast commissioning, diagnosis and service with the removable Local Control Panel (LCP)
Wide range of additional options to meet system and application-specific requirements
Packaging, food and beverage and pharmaceutical machinery applications.
