Exciting news! Our latest breakthrough technology revolutionizes cleaning for your plant’s entire process systems – from drives to control panels – all done in seconds, without any disruptive shutdowns. ???? With smart technology built-in, our product makes cleaning and maintenance hassle-free. No more shutdowns needed – simply spray directly onto the system and let the magic happen! At Team Adhunik, seamless innovation is our promise at every step. Elevate your operations today with our game-changing solution.

Danfoss Drive 101, an advanced and efficient solution for motor control. As a leading provider of innovative technologies, Danfoss is committed to delivering high-quality products that enhance energy efficiency and optimize industrial processes.

The Danfoss Drive 101 is a versatile variable frequency drive (VFD) that offers precise control over motor speed, torque, and acceleration. Its intuitive design and user-friendly interface make it suitable for a wide range of applications, including pumps, fans, compressors, and conveyors. Let’s delve into the working principles of this exceptional drive:

1. Control and Regulation: The Drive 101 incorporates advanced algorithms and control techniques to regulate the motor’s speed according to the desired setpoints. It continuously monitors the system parameters, such as load conditions, and adjusts the motor’s frequency and voltage to maintain optimal performance.

2. Power Conversion: The drive converts the incoming AC power supply into a controlled DC voltage using a rectifier module. This rectified DC power is then fed into an inverter module, which converts it back to a variable-frequency AC power output suitable for driving the motor.

3. Speed Control: The Drive 101 enables precise speed control through a closed-loop feedback mechanism. It can receive speed reference signals from various sources, such as external controllers or internal programming. By comparing the actual motor speed with the desired reference, the drive adjusts the motor’s frequency and voltage accordingly to maintain the desired speed.

4. Protection and Safety Features: The Danfoss Drive 101 prioritizes the safety of the motor and the connected equipment. It incorporates a range of protective features, including overvoltage and undervoltage protection, overload protection, short-circuit protection, and overtemperature protection. These safeguards help prevent damage to the motor and ensure reliable and safe operation.

5. Energy Efficiency: One of the key advantages of the Drive 101 is its energy-saving capabilities. By precisely adjusting the motor’s speed to match the required load, the drive eliminates energy wastage associated with traditional fixed-speed motor control methods. This results in significant energy savings and reduced operational costs.

6. Connectivity and Integration: The Drive 101 supports various communication protocols, such as Modbus, Profibus, and Ethernet, enabling seamless integration into existing control systems. It also offers remote monitoring and control capabilities, allowing users to access real-time data, make adjustments, and diagnose issues remotely.

Soft Starters are used on AC Motors to limit its starting current. The starting inrush current can be controlled by programming the Soft Starters. We can set the time taken by the motor to ramp up to full speed and thus protecting the motor from damage caused by sudden influx of power. Further, the mechanical stress on the motor, i.e. wearing of motor bearings, wear and tear of gear box is also reduced which results in savings on service and maintenance costs.

Soft starters are smaller in size than AC drives (VFDs) and hence you save a lot of space in Panels. Also this size difference is more significant if the Ampere ratings are higher.

Soft Starters are almost One tenth the price of a High Power Drive. So if your control requirements are covered by limiting current only at start and stop, with no need for constant acceleration and torque control, then there are significant savings to be won.

The soft starter does not change the frequency and therefore does not generate harmful harmonics. So when using a soft starter there is no need to consider harmonics at all as compared to AC drives (VFDs). No requirement of filters and screened cables.

The main difference between Soft Starters and VFDs is that a VFD can vary the speed of the motor while the Soft starter can only control the starting and stopping of that motor.

Different models of Soft Starters in Danfoss are :

• VLT® Soft Start Controller MCD 100 (0.1 KW TO 15 KW)
• VLT® Compact Starter MCD 201 / 202 (7 KW TO 110 KW)
• VLT® Soft Starter MCD 600(7.5 KW TO 1400 KW)

MCD 600 model of Danfoss Soft starter also has provision of an integrated bypass contactor in built to allow direct-online operations as an alternative. The integrated bypass contactor system offers multiple costsaving benefits – it ensures both extremely high efficiency and harmonic-free operation at full speed, reducing energy consumed and required cooling capacity.

Adhunik Automation India provides VFD training to keep your teams competence up-to-date .

We offer training courses to help you build your teams competence, enhance safety, develop your staff’s troubleshooting skills, and maximize the availability of your drives.

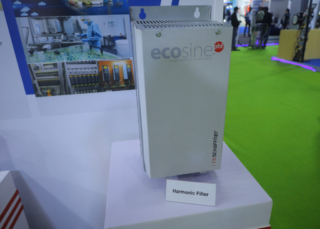

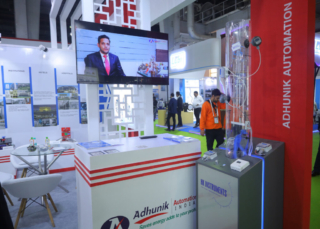

We had a delightful experience by participating in Acrex 2020. We had a massive footfall at our stall and received a significant amount of appreciation from our customers. We tend to further participate in such learned events as they helps us in extending our reach to numerous customers.
